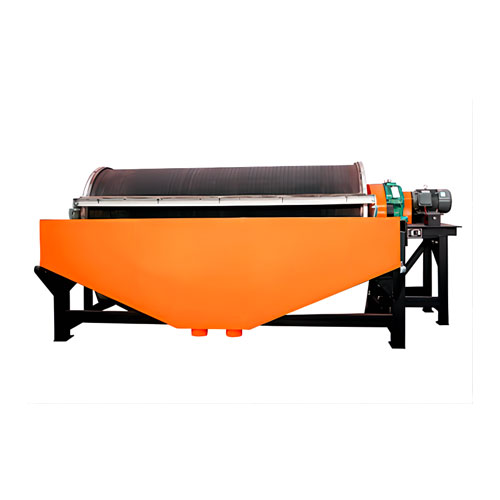

Series NCTB Dewatering Magnetic Concentrated Separator

Short Description:

It is used to improve the concentration, designed for the magnetic separation processing the low concentration of slurry...


Product Detail

Product Tags

Applicable Scope

It is used to improve the concentration, designed for the magnetic separation processing the low concentration of slurry.

Technical Features

The magnetic separator capable of dewatering effectively has simple structure and high efficiency, concentrate concentration can reach up to 68% above, large broad-angle magnetic system, ore recovery rate can reach 99.5%.

High magnetic intensity, low energy consumption.

Drum reverse rotation, unloading ore side using scraper instead of the water.

Technical Parameter:


Model

Drum size
 (diameter*
 length )mm

magnetic intensity
 mT

Processing Capacity t/h

Motor power
 kW

Total weight
 kg

CTB-1015

1050*1500

According to the ore grade to    choose

35~65

4

3600

NCTB-1018

1050*1800

40~75

4

5300

NCTB-1021

1050*2100

50~90

5.5

6900

NCTB-1024

1050*2400

60~100

5.5

8000

NCTB-1030

1050*3000

90~105

7.5

9500

NCTB-1218

1200*1800

70~90

7.5

6500

NCTB-1224

1200*2400

90~100

111

8700

NCTB-1230

1200*3000

100~160

11

10500

NCTB-1240

1200*4000

180~200

11

12000

NCTB-1530

1500*3000

140~190

11

13500

NCTB-1540

1500*4000

170~240

11

15000
