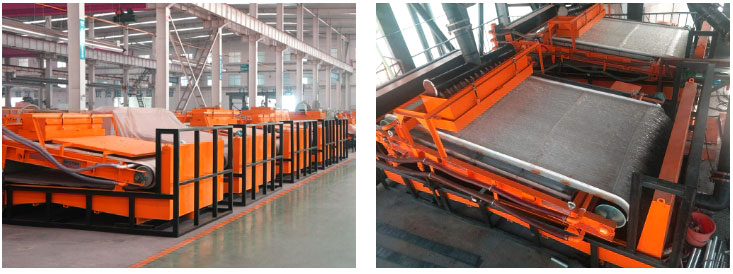

SGB Wet Belt Strongly Magnetic Separator
Application
It is used for iron removal and purification of non-metallic minerals in wet processing, especially for wet iron removal of non-metallic minerals such as quartz sand, potassium feldspar, and soda feldspar.In addition, it has a good separation performance for weak magnetic minerals such as hematite, limonite, specularite, siderite, manganese ore, and tantalum-niobium ore.
SGB Wet Belt Strongly Magnetic Separator is a new type of magnetic separation equipment developed by JIEMA Company, which summarizes the advantages and disadvantages of traditional magnetic separation equipment and breaks the conventional design concept.Integrating magnetic separation and gravity separation,it has the advantages of high magnetic field strength, significant iron reduction effect, large processing capacity, energy-saving, water-saving, and simple operation.This equipment has applied for a national patent.
Technical Characteristics
◆High magnetic filed intensity:The magnetic system is made up of the rare earth Nd-Fe B magnets with high performance. It has a very wide poly pole face, lots of magnetic poles. It’s with a very high magnetic induction ability and a very high magnetic gradient. The magnetic intensity in some part can reach 17000 Gs.
◆Big magnetic system area:At present, the largest width for the magnetic system is 2500 mm, and its largest length is 3000 mm.
◆Even material distribution:Double-layer orifice plate is used for material distribution, which is stable and uniform, and the material depth is small.
◆Thorough iron discharge: There’re various belts specially designed to remove the iron for the customer’s choice. Made by the compound materials with high quality, the belt can serve for a long lifetime and remove the iron remarkably.
◆Energy and water saving:Driven by one motor with small power, it’s very energy-saving. With the special controllable design of water system, water is greatly saved.
◆Protect the WHIMS:Used in conjunction with the WHIMS to reach the limit level of magnetic separation iron removal.
No. | Model | A(mm) | B(mm) | H(mm) | A1(mm) | H1(mm) |
1 | SGB-0815 | 3640 | 1320 | 2000 | ||
2 | SGB-1020 | 4140 | 1520 | 2500 | ||
3 | SGB-1220 | 4140 | 1720 | 2500 | ||
4 | SGB-1525 | 4640 | 2020 | 3000 | ||
5 | SGB-2025 | 4640 | 2520 | 1850 | 3000 | 98 |
6 | SGB-2030 | 5140 | 2520 | 3055 | ||
7 | SGB-2525 | 4640 | 3100 | 3000 | ||
8 | SGB-2530 | 5140 | 3100 | 3055 |
