Why use Multotec screen panels?

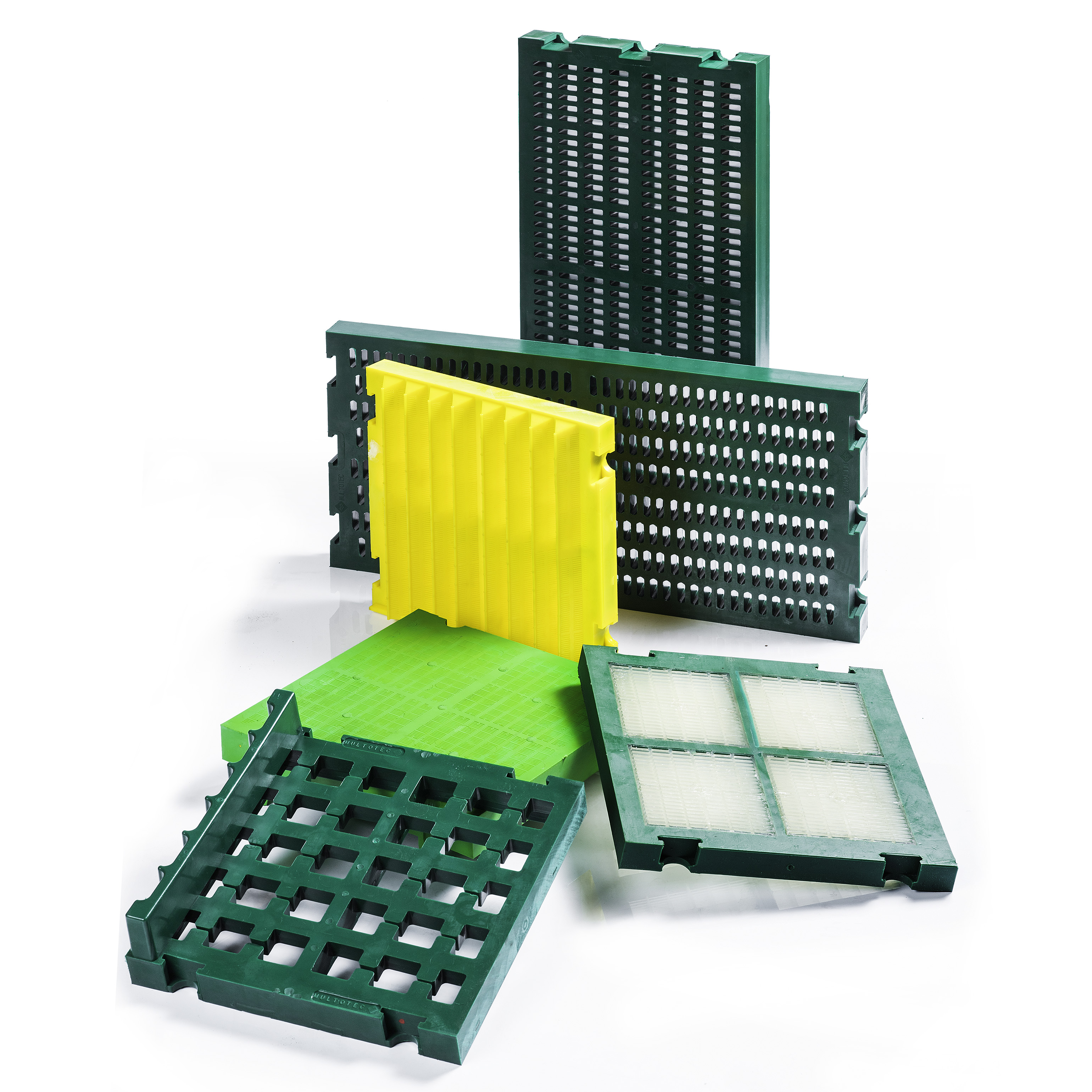

Our panel offerings include solid feed-end panels, slope change panels, slotted aperture panels for high velocity zones, and square aperture panels for low velocity zones

The deck map allows us to specify, for instance a set of panels comprising of highly impact –resistant material at the feed end of the screen.

Designed for improved wear life in tough operating conditions

Available in standard (305 x 305 mm and 305 x 610 mm) and customised sizes to match your application

Range of aperture sizes and panel thicknesses

Quick and simple installation and removal

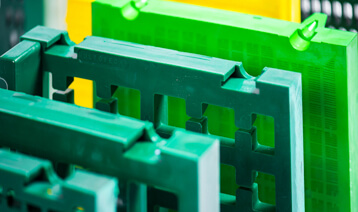

Available with a wide range of screen fastening systems and accessories

6 Top features of Multotec screen panels

Our range of screen openings offer the ability to customise your screen deck(s) to accommodate particular production specifications or operational needs.

The goal in implementing a blended solution is to find the optimal combination of open area and durability.

Superior wear resistance

Maximize product quality and profits by increasing efficiency of classification while minimizing downtime and maintenance costs.

Easy changeover to maximise wear life and provide a more economical solution

So that meantime between failures (MBTF) can be extended and scheduled maintenance can be conducted as infrequently as possible

World's leading screen panels: high performance, durable & low cost

Performance

Specifically designed for all mining and hard rock industries

Custom designed apertures round, square and slotted in variety of sizes

High screening efficiency – up to 30 % more throughput

Long service life – up to 5 times more wear life

High profitability high product quality, shorter downtimes, less maintenance cost

Durability

Suitable for tough abrasive applications

Durable in impact and wear applications, rubber scalping screens can out last metal screen

Hardox® and Ceramics embedded in rubber capable of handling impact of 600mm top size

High impact slotted skid bar panels known as Multotec Ratel panels, are used to reduce channelling and ensure accurate cut size and provide maximum wear life

Cost

Easy to fit

Reduces down time and cost / ton of materials handling

Increase process efficiency with customised screening solutions

The screen panel is the most critical part of your screening application as it determines the grade of material you will receive from the process. For this reason it is essential that the appropriate panels or panel combinations are fitted to ensure maximum efficiency for downstream processes.

Committed to optimising your screening plant performance to help you process minerals more efficiently and at a lower overall cost, Multotec’s screening media specialists will ensure you are using the best panels for your process.

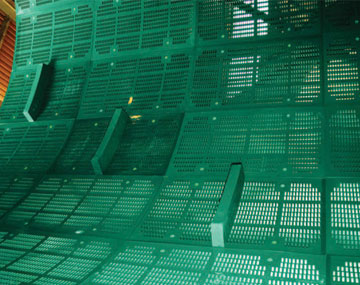

The modular design of our panels, together with our innovative fastening systems and rails, means completely customised screen decks can be built using a variety of screen panels, where different areas of the deck are subjected to different wear and impact forces. The smart design of the panels also means they can be quickly and easily replaced at the end of their service life.
